4 Level Water Level Indicator Using C945 Transistor – Simple School Science Project

If you are searching for an easy school science project using a transistor, this 4 level water level indicator circuit using C945 transistor is one of the best beginner projects you can build in one evening. It looks impressive on a science exhibition table, it teaches real electronics concepts, and you only need a handful of cheap parts.

This guide walks you through the entire water level indicator project in plain, simple language — no confusing jargon, just clear steps a student can follow and explain confidently to teachers and judges.

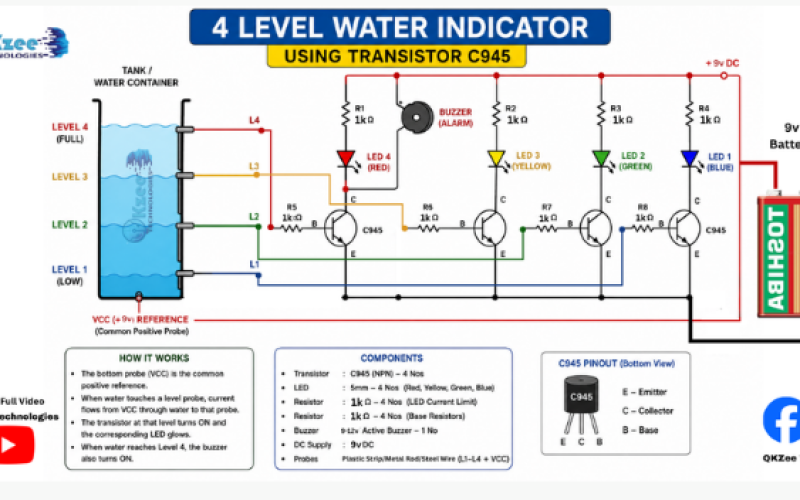

4 level water level indicator using C945 transistor circuit diagram

What Is a Water Level Indicator Circuit?

A water level indicator is a simple circuit that tells you how full a tank, bucket, or container is — without you having to look inside. As water rises and touches different sensing points (probes), different LEDs light up to show the level: low, medium, high, and full.

In this 4 level water indicator project, we use:

  • 4 LEDs (Blue, Green, Yellow, Red) — one for each water level
  • 4 C945 transistors — one to control each LED
  • 4 1K resistors for the transistor bases
  • 4 1K resistors for the LEDs (current limiting)
  • A 9V battery with an on/off switch
  • A breadboard and jumper wires
  • Thin wires as water-sensing probes

This project is popular for school science fairs because it demonstrates transistor switching, water conductivity, and basic circuit design — all in one working model.

Why Use the C945 Transistor?

The C945 transistor is an NPN transistor commonly used in hobby and school projects because it is cheap, easily available, perfect for small signal switching (like turning on an LED), safe to use with a 9V battery, and easy for beginners to understand.

Water is not a perfect conductor, so the tiny current that passes through water alone is too weak to light an LED directly. This is where the C945 transistor becomes important — it acts like an amplifier switch. A small current from the water probe flows into the base of the transistor, and the transistor allows a much bigger current to flow from the battery through the LED. That is the whole trick behind this circuit.

C945 Pinout — Read This First

The C945 (2SC945) comes in a TO-92 package with three legs. Hold it with the flat side facing you and the legs pointing down. From left to right the pins are:

  • Pin 1 — Emitter
  • Pin 2 — Collector
  • Pin 3 — Base

So the order is E-C-B. This matters: many guides (including the earlier version of this post) wrongly list it as E-B-C. If you wire the transistor by the wrong pinout, the circuit will not work. When in doubt, check the 2SC945 datasheet for your exact part before placing it on the breadboard.

How the 4 Level Water Indicator Works

Think of your water container with 5 wire probes dipped inside at different heights:

  1. One common probe placed at the very bottom (this always touches water first)
  2. Four level probes placed at increasing heights — Level 1 (Blue), Level 2 (Green), Level 3 (Yellow), Level 4 (Red)

Here is the simple logic:

  • When water is very low, it only touches the common probe and Probe 1 → the Blue LED turns on
  • As water rises and touches Probe 2 → the Green LED also turns on
  • Water rises further to Probe 3 → the Yellow LED turns on
  • When the tank is full and water touches Probe 4 → the Red LED turns on (warning that the tank is full)

Water acts as a natural conductor, closing the circuit between the common probe and each level probe. This tiny current triggers the base of each C945 transistor, switching on its connected LED.

Components Required for This Project

ComponentQuantityPrice / link
C945 NPN transistor4—
LED — Blue15mm Diffused LED — Rs 6
LED — Green15mm Diffused LED — Rs 6
LED — Yellow15mm Diffused LED — Rs 6
LED — Red15mm Diffused LED — Rs 6
1K resistor (for transistor bases)4—
1K resistor (for LEDs)4—
9V battery with clip19V Battery with Clip Connector — Rs 120
Battery clip with on/off switch1—
Breadboard1MB102 Solderless Breadboard — Rs 250
Jumper wiresAs needed40-Pin Dupont Jumper Wires — Rs 180
Thin copper probe wires5—
Plastic bottle or small water container1—

C945 transistors and 1K resistors do not have individual listings in the QKZEE shop — they are available at the Hall Road shop on request, or as part of a kit (see below).

Step-by-Step Circuit Assembly Guide

Follow these steps carefully. Take your time — this is exactly how any beginner builds their first transistor-based water level indicator.

Step 1: Identify the C945 Transistor Pins

Hold each C945 with the flat side facing you and the legs pointing down. Left to right: Emitter, Collector, Base (E-C-B). Getting this right is important — double-check against the pinout above before placing the transistors on the breadboard.

Step 2: Place All 4 Transistors on the Breadboard

Insert the 4 C945 transistors in a row on your breadboard, leaving enough space between each one so the LEDs and resistors do not overlap.

Step 3: Connect the Base Resistors

Connect a 1K resistor from the base pin of each transistor to a separate probe wire. This resistor protects the transistor and controls how much current flows into the base.

Step 4: Connect the LEDs

Connect each LED’s positive leg (anode) through a 1K resistor to the 9V positive rail. Connect the LED’s negative leg (cathode) to the Collector pin of its transistor.

  • Transistor 1 → Blue LED (Level 1 – Low)
  • Transistor 2 → Green LED (Level 2 – Medium)
  • Transistor 3 → Yellow LED (Level 3 – High)
  • Transistor 4 → Red LED (Level 4 – Full)

Step 5: Connect All Emitters to Ground

Connect the Emitter pin of every transistor to the negative (ground) rail of the breadboard.

Step 6: Connect the Common Probe to the POSITIVE Rail

Take one more wire and connect it to the positive (+9V) rail of the breadboard. This becomes your common probe, which will sit at the bottom of the water container.

This step is the heart of the circuit, so get it right: water must carry the positive voltage to the base of each transistor. When water touches a level probe, a small current flows from the common probe (+9V) through the water and the 1K base resistor into the transistor’s base, switching the transistor ON and lighting its LED. If the common probe is connected to ground instead, the base stays at 0V, the transistor never switches on, and no LED will ever light up.

Step 7: Set Up the Probes in the Container

Tape or fix the 5 probe wires (1 common + 4 level wires) vertically inside your plastic bottle or container at different heights, from bottom to top.

Step 8: Connect the Battery and Switch

Connect the 9V battery through the on/off switch to the breadboard’s power rails — positive to positive, negative to negative.

Step 9: Test the Circuit

Switch the circuit ON. Slowly pour water into the container and watch the LEDs light up one by one — Blue, then Green, then Yellow, then Red — as the water level rises.

Tips for a Perfect Working Model

  • Use clean, stripped copper wire for probes — a good bare metal tip gives better conductivity.
  • Keep probes at equal distance from each other for evenly spaced level readings.
  • Test each transistor separately before final assembly, by dipping just one probe pair in water.
  • Use tap water, not distilled water — distilled water conducts electricity poorly.
  • Label your LEDs on the display board (Low, Medium, High, Full) for a clean project presentation.
  • Avoid loose breadboard connections — a shaky jumper wire is the most common reason this circuit randomly fails during a science exhibition.
  • Add a project report explaining transistor switching, conductivity of water, and real-life uses (like overhead tanks, water pump automation, and RO water systems) — judges love a project that connects to real life.
  • For a neater final project, this circuit can later be soldered onto a PCB / general-purpose board instead of a breadboard.

Real-Life Applications of This Project

This simple transistor water level indicator is not just for school — the same concept is used in:

  • Overhead water tank level monitors in homes
  • Automatic water pump cut-off systems
  • Industrial tank level warning systems
  • RO (Reverse Osmosis) water purifiers
  • Aquarium and fish tank water level alerts

Mentioning these applications in your school project file is a great way to show practical understanding, not just circuit building.

Where to Buy the Components

The parts for this project — 9V battery with clip, breadboard, jumper wires and LEDs — are available at QKZEE Technologies, Shop 20, 1st Floor, Al-Khalil Center, Hall Road, Lahore, and online at qkzeetech.com with delivery all over Pakistan. See the links in the components table above.

No C945 transistor at hand? A BC547 transistor also works in this circuit, but its pins are in a different order (Collector-Base-Emitter with the flat side facing you) — always check the pinout before wiring. BC547 transistors, LEDs, resistors, a breadboard and more come inside the QKZEE STEM Basic Electronics Starter Kit (Rs 1,850) — see our STEM kit guide for the five beginner projects you can build with it.

Still Stuck?

If your LEDs do not light up, or only some levels work, message us — tell us which LED stays dark and how you connected the common probe, and we will help you find the fault.

Chat on WhatsApp Watch on YouTube

FAQs

Why won’t any of my LEDs light up?

The most common cause is the common probe: it must connect to the positive (+9V) rail, not ground. The second most common cause is the transistor pinout — the C945 is Emitter-Collector-Base (E-C-B) with the flat side facing you, not E-B-C. Check both, then test one level at a time.

Can I use a BC547 instead of the C945?

Yes. The BC547 is also an NPN transistor and works in this circuit, but its pins are in a different order (Collector-Base-Emitter). Check the pinout before wiring, or you will wire it backwards.

Why must I use tap water and not distilled water?

Tap water contains dissolved salts, so it conducts electricity. Distilled water is almost pure, so it conducts very poorly and the base current stays too small to switch the transistor on.

How many levels can I add?

As many as you like — one transistor, one LED, one base resistor and one probe wire per level. Four levels is a good size for a school model.

Is a 9V battery safe for a school project?

Yes. 9V is low voltage and safe to handle on a breadboard. Adult supervision is still recommended for younger students, and never connect the circuit to household AC power.

Where can I buy the parts in Pakistan?

From QKZEE Technologies on Hall Road, Lahore, or online at qkzeetech.com with Cash on Delivery across Pakistan — see the component links above.

Conclusion

Building a 4 level water indicator using C945 transistor, 9V battery, breadboard, and LEDs is one of the most rewarding beginner electronics projects for school students. It is affordable, safe, easy to assemble on a breadboard, and teaches real concepts about transistors, resistors, and water conductivity — all while creating a working, colorful, eye-catching display for your science exhibition.

Follow this step-by-step water level indicator circuit guide from QKZEE, gather your components, take your time on the wiring, and you will have a fully working project ready to impress your teachers and classmates.
