How to Make a 12V DC to 5V DC Converter Power Supply Using 7805: A Complete Guide

Introduction to 12V to 5V DC Converters

If you’re working on student projects, final year projects (FYP), or DIY electronics, you’ll often need a reliable 5V power supply. Many devices like Arduino boards, sensors, and microcontrollers require 5V DC. However, most batteries or adapters provide 12V DC. This guide will show you how to build a simple, cost-effective 12V to 5V DC converter using the 7805 voltage regulator. Perfect for engineering projects, science projects, and automation tasks, this project is ideal for students, hobbyists, and professionals across all universities in Pakistan and technical colleges.

Why Use the 7805 Voltage Regulator?

The 7805 is a linear voltage regulator IC that converts higher DC voltages (7V to 35V) to a stable 5V output. It’s affordable, easy to use, and widely available at electronics stores like Hall Road Lahore. Whether you’re building Arduino projects or prototyping circuits for school projects, the 7805 is a go-to component for beginners and experts alike.

Components Required

1. 1. 7805 Voltage Regulator IC

The core component of this project. It regulates the input voltage (12V) to a steady 5V output.

1. 2. Capacitors (1000µF, 0.1µF and 100µF)

Used to filter noise and stabilize voltage. A 1000µF capacitor is placed at the input, and a 0.1µF and 100µF capacitor at the output.

1. 3. diode 4007

2.
   Diode 4007 for forward biasing in the input.




3.

   3. Heat Sink

The 7805 generates heat when converting higher voltages. A heat sink prevents overheating and ensures longevity.

1. 4. Resistors (Optional)

This is for current-limiting or LED indicators (if needed).

1. 5. PCB or Breadboard

For assembling the circuit. Breadboards are ideal for prototyping, while PCBs are better for permanent setups.

1. 6. 12V Power Source

A 12V battery, adapter, or power supply.

1. 7. Connecting Wires

To link components on the breadboard or PCB.

Where to Buy Components?

Components are available at Qkzee Technologies Hall Road Lahore, an electronics hub. For online purchases, check Qkzee Tech or Qkz Tech, which cater to engineering services and DIY enthusiasts.

Step-by-Step Guide to Building the Converter

Step 1: Understand the 7805 Pin Configuration

The 7805 has three pins:

• • Input (Pin 1): Connects to the 12V source.
  • Ground (Pin 2): Connected to the common ground.
  • Output (Pin 3): Delivers the regulated 5V.

Step 2: Circuit Design

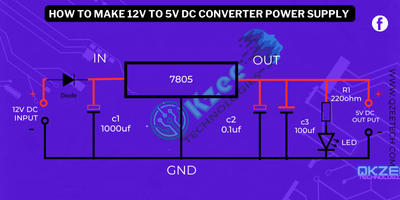

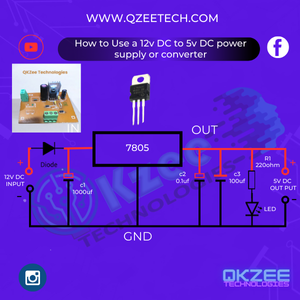

Here’s a basic schematic:

1. 1. Connect the 12V input to Pin 1 of the 7805 and Diode 4007 pin 1 as forward-biased.
   2. Attach a 1000µF capacitor between Pin 1 and ground to reduce input noise.
   3. Connect Pin 2 to ground.
   4. Attach a 0.1µF and 100µF capacitor between Pin 3 (output) and ground for output stability.
   5. Add an LED with a resistor (e.g., 220Ω) to the output as a power indicator (optional).




Step 3: Assemble on Breadboard or PCB

For prototyping, use a breadboard. For permanent setups, design a PCB using software like Eagle or KiCad. Qkzee Technologies offers PCB design services for FYP projects in Lahore.

Step 4: Add a Heat Sink

Solder a heat sink to the 7805 to dissipate heat. Without it, the IC may overheat and fail.

Step 5: Test the Circuit

Use a multimeter to check the output voltage. If it reads 5V ± 0.25V, the circuit works!

Common Issues and Troubleshooting

1. 1. Overheating

If the 7805 gets too hot, ensure the input voltage isn’t too high (ideally 7V–12V). Use a larger heat sink or a switching regulator for high-current applications.

1. 2. Voltage Drops

If the output is below 5V, check for loose connections or faulty capacitors.

1. 3. Noise in Output

Add a 100µF electrolytic capacitor at the output for better filtering.

Applications of the 12V to 5V Converter

1. 1. Arduino and Raspberry Pi Projects

Power Arduino Uno, ESP8266, or sensors in IoT and automation projects.

1. 2. DIY Electronics

Build portable chargers, LED drivers, or small robots.

1. 3. Academic Projects

Ideal for school projects, science projects, and engineering service prototypes at all technical colleges in Pakistan.

Why This Project is Perfect for Students

This converter is a fundamental project for electrical engineering students. It teaches voltage regulation, circuit design, and troubleshooting. Plus, it’s a great addition to portfolios for final year projects or internships with the best engineering services in Lahore.

Where to Get Professional Help?

For complex FYP projects in Lahore, reach out to Qasim Shahzad Lahore or Qkzee Technologies. They offer expert engineering services and mentorship.

Conclusion

Building a 12V to 5V converter using the 7805 is a simple yet valuable skill for students, hobbyists, and engineers. With components from Hall Road Lahore or online stores like Qkz Tech, you can create a reliable power supply for Arduino projects, school experiments, or industrial prototypes. Whether you’re searching for “engineering services near me” or tackling DIY electronics, this guide equips you with the knowledge to succeed!
